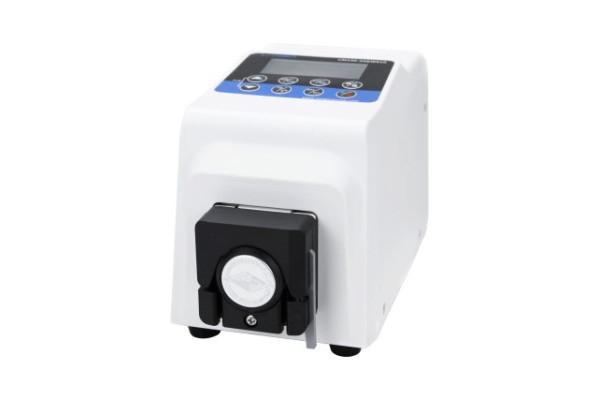

GM100-2A Mini Peristaltic Pump – 0–100 RPM Precision Speed Control

The GM100-2A & WX10 Mini Peristaltic Pump is a compact, high-precision fluid transfer solution designed for laboratory, analytical, and industrial applications. Engineered for reliable and efficient operation, the pump features a 4-roller WX10 pump head that delivers smooth, consistent flow with reduced pulsation.

Key Features

• Including 4-roller pump head WX10-14 with low pulsation.
• Compact Design – Space-saving construction with a small 200 × 115 × 135 mm footprint, ideal for laboratory benches, instruments, and space-constrained installations.
• 10,000:1 Speed Control Ratio – Provides a wide adjustable speed range of 0–100 rpm for precise control of fluid delivery.
• High-Resolution Speed Adjustment – Speed can be precisely adjusted with different resolutions across the operating range:
  • <10 rpm: 0.01 rpm resolution
  • 10–100 rpm: 0.1 rpm resolution
• Versatile Operating Modes – Supports both continuous mode and timer mode, providing flexibility for different liquid-transfer and dispensing applications.

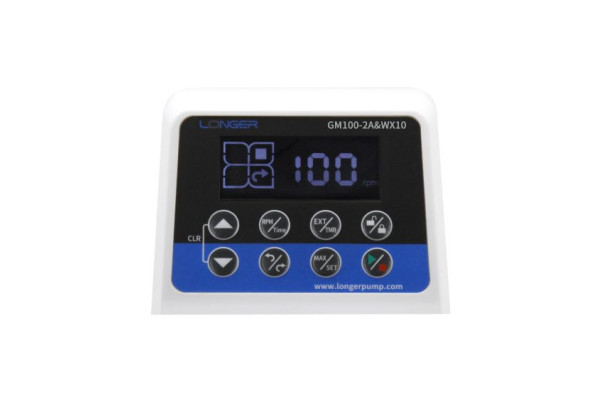

• User-Friendly LCD Interface – The LCD screen clearly displays pump speed, running direction, operating time, and pump status for convenient monitoring and operation.
• Multiple Control Options – The pump can be conveniently operated using the built-in keypad or footswitch, allowing hands-free operation when required.
• Low-Noise Operation – Engineered for quiet performance, making it well suited for laboratories and other noise-sensitive working environments.
• Durable and Efficient Design – Features IP31-rated protection and operates from a 24 VDC, 8 W power supply for reliable everyday use.
• The GM100-2A does not support external or communication control.

Typical Applications

• Applications in labs or industries

Compatible Head and Tubing

• Silicone tubing: tubing with ID ≤ 3.17 mm and wall thickness 0.8-1.0 mm.

Package Content

GM100-2A drive, WX10 pump head, power cord with 24 VDC adapter, manual.
