NiceTeck Diode Lasers
$0.00
- Stock: In Stock
- Model: Various
- Weight: 2.00kg
Available Options
The diode laser features compact designs, cost effectiveness, long lifetimes, and user friendliness. This model is most widely used in DNA sequencing, flow cytometry, medical imaging, laser-induced fluorescence (LIF) detection, etc.
Key Features:
- Compact design, lightweight
- Standard AC power input (90 – 264 V, 50/60 Hz)
- TTL or/and Analog modulation, optional
- Output power adjustable, optional
- Over 10,000 hours operating lifetime
- FDA CDRH Compliant Class IIIb enclosure
Package Includes:

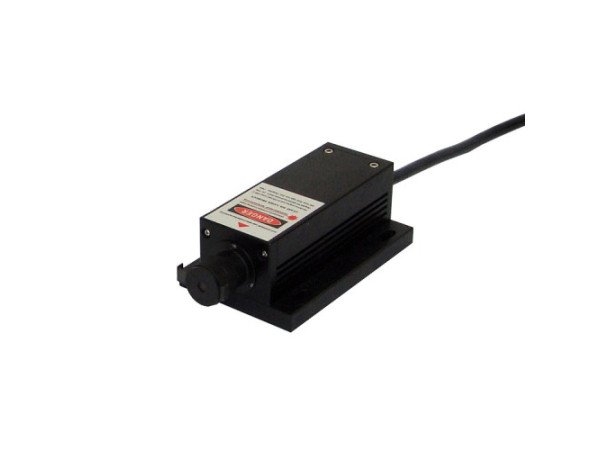

- Laser Head

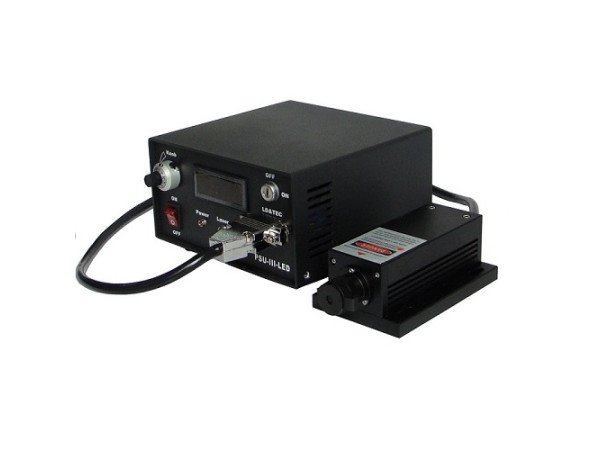

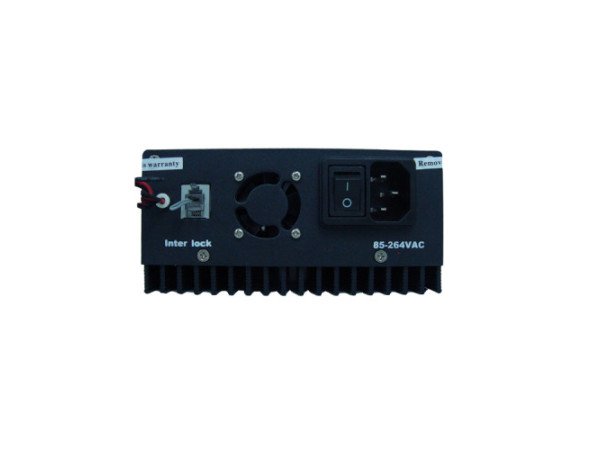

- Power Supply Unit/Driver
- Power Cord
- Keys, Safety Interlock
- Factory Testing Reports
- User Manual
| Operating Mode | CW |
| Transverse Mode | Near TEM₀₀ |
| M² Factor | <2.0 (<1.5, optional) |
| Beam Diameter at Aperture (1/e², mm) | ~3.5 |
| Beam Divergence, full angle (mrad) | <1.0 |
| Polarization Ratio | >50:1 (>100:1, optional); Horizontal±5 degree (Vertical Optional) |
| Beam Height from Base Plate (mm) | 24.8 |
| Pointing Stability after warm-up (mrad) | <0.05 |
| Operating Temperature (°C) | 10~35 |
| Warm-up time (minutes) | <5 |
| Dimensions & Weight | |
| Laser Dimensions (mm) | 143.5x73x46.2 |
| Laser Weight (kg) | 0.7 |
| Power Supply Weight (kg) | PSU-III-FDA: 1.2kg; PSU-III-LED: 1.5kg |
| Options | |
| Power Stability (rms, 4 hours) | <1%, <2%, <3%, optional |
| Power Supply (90-264 VAC) | PSU-III-FDA / PSU-III-LED / PSU-A-D |
| Modulation | N/A or TTL on/off, TTL or Analog with 1Hz-1kHz 1kHz-10kHz, 10kHz-30kHz, 30kHz-100kHz optional |
| Lifetime & Warranty | |
| Expected Lifetime (hours) | 10000 |
| Warranty Period (month) | 12 |
| Thumb | File information |
 | MDL-III-488L.pdf File Size748.27KB Downloaded: 602 |
